Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: PPAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 100000 tons per year
Product Name: |

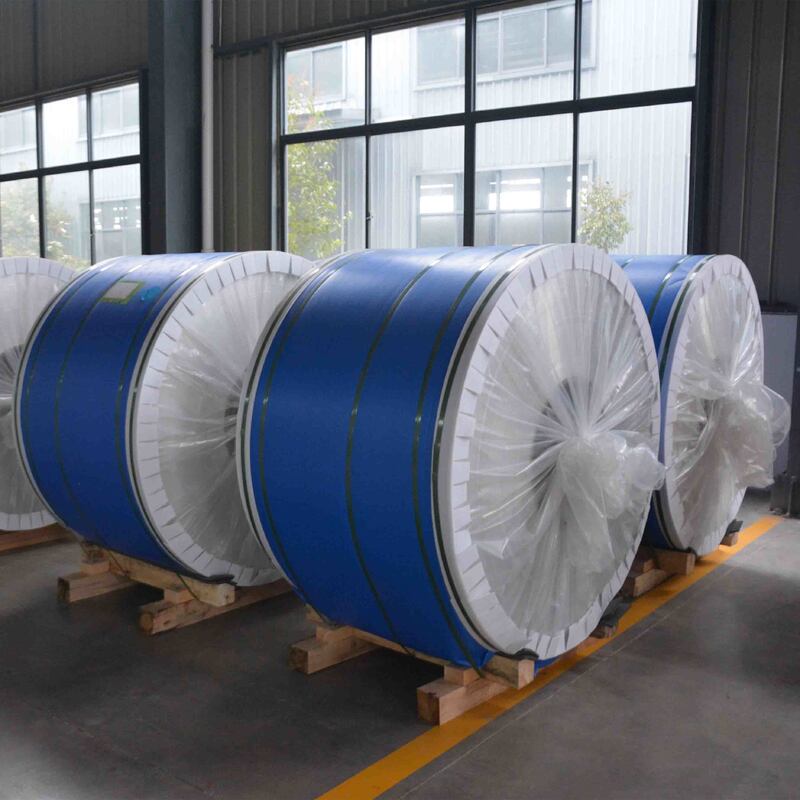

Prepainted Aluminum Coil |
Alloy: |
1050, 1100, 3003, 5052, 5050, 3104 |
Temper: |
H1-H32, T3-T8 |
Thickness Paint Layer: |
PVDF, More Than 25micron |
Type Of Coating: |
PE Or PVDF Mainly |
Thickness Paint Layer PE: |
More Than 18micron |
Product Name: |
Prepainted Aluminum Coil |
Alloy: |
1050, 1100, 3003, 5052, 5050, 3104 |
Temper: |
H1-H32, T3-T8 |
Thickness Paint Layer: |
PVDF, More Than 25micron |
Type Of Coating: |
PE Or PVDF Mainly |
Thickness Paint Layer PE: |
More Than 18micron |
|
Item
|
Specification
|
Remarks
|
|---|---|---|
|
Aluminum Alloy Substrate
|
1060, 3003, 5052 series
|
1060: cost-effective; 3003: better rust resistance; 5052: high strength, suitable for harsh environments
|
|
Thickness
|
0.3mm - 3.0mm
|
Common thickness for commercial roofing: 0.5mm - 1.2mm
|
|
Width
|
1000mm, 1220mm, 1500mm, 1600mm
|
Customizable according to project needs
|
|
Length
|
2m - 12m
|
Customizable for continuous paving to reduce joints
|
|
PE Coating Thickness
|
Front: ≥16μm; Back: 5-10μm
|
Meet GB/T22412 standard
|
|
Coating Adhesion
|
Grid method: 0 level; Circle method: 1 level
|
No peeling or falling off after bending
|
|
Weather Resistance
|
Artificial weather aging (600h): △E≤2.0; Salt spray (720h): No corrosion
|
Suitable for outdoor long-term use
|
|
Fire Rating
|
Class A (non-combustible)
|
Meet commercial building fire safety standards
|
|
Wind Uplift Resistance
|
≥1.5kN/㎡
|
Adapt to strong wind weather
|
|
Service Life
|
8-12 years
|
Depends on the use environment
|
Packaging: Each sheet is covered with a thick PE film to prevent scratches, corrosion, and saltwater pollution; the sheets are stacked neatly, separated by wooden strips, and packaged with waterproof, moisture-proof, and anti-corrosion packaging materials, suitable for sea, land, and air transportation.
Storage: The products should be stored in a dry, ventilated, and rain-proof warehouse, placed obliquely at an angle of 5°, with wooden strips under the bottom (spacing ≤2m) to avoid moisture, deformation, and corrosion.
Transportation: During transportation, avoid collision, extrusion, exposure to rain, sunlight, and salt spray; for marine transportation, additional anti-corrosion packaging is added to prevent saltwater erosion during transportation, ensuring the products arrive at the coastal project site in good condition.
