Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: Dingang - Color coated Aluminum
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: 15 - 35 Days
Payment Terms: L/C, T/T
Supply Ability: 300 000 Metric Tons/Per Year
Commodity Name: |
Aluminium Sheet |
Shape: |
Customizable |
Material: |
1050/1060/1070/1100/3003/5052/5083/6061/6063 |
Alloy Or Not: |
Is Alloy |
Type: |
Plate/Coil,Sheet/Plste/Coil/Strip |
Surface Treatment: |
Color Coated |
Commodity Name: |
Aluminium Sheet |
Shape: |
Customizable |
Material: |
1050/1060/1070/1100/3003/5052/5083/6061/6063 |
Alloy Or Not: |
Is Alloy |
Type: |
Plate/Coil,Sheet/Plste/Coil/Strip |
Surface Treatment: |
Color Coated |
| Item | Specification |
| Alloy Grade | 5052 (Al-Mg Alloy, commercial roofing preferred; high magnesium content, excellent corrosion resistance, ductility, and structural strength) |

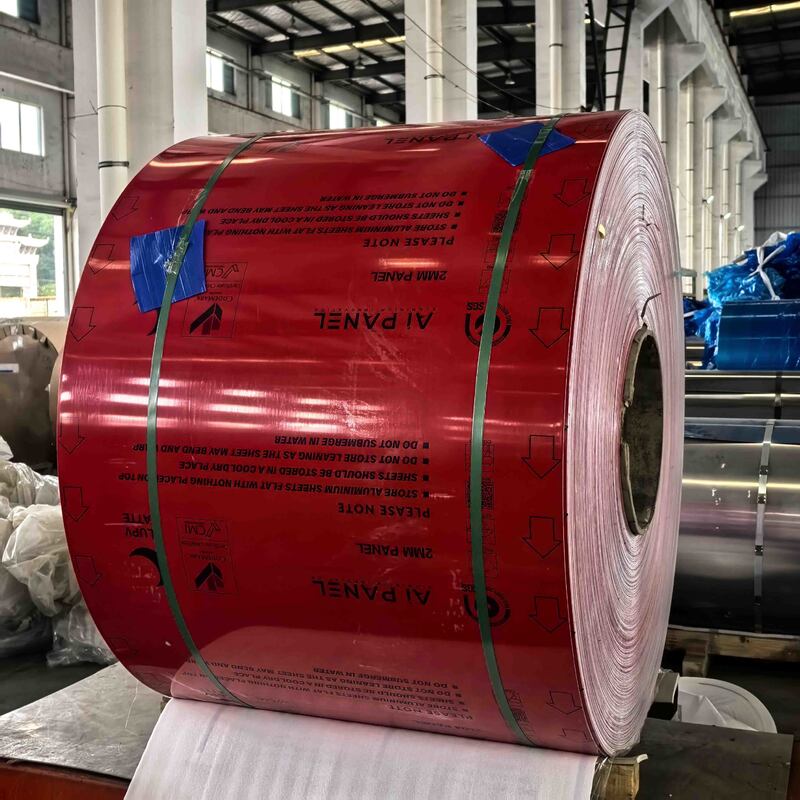

| Product Type | Aluminum Coil (for commercial roofing systems; can be processed into sheets, standing seam, corrugated, and other commercial roofing profiles) |
| Thickness | 0.040'' (1.016 mm, 1 inch = 25.4 mm; optimized for commercial roofing, balancing high strength and lightweight, suitable for large-span commercial roofs) |
| Width | Customizable (Commercial Common: 4ft/5ft/6ft, 1219mm/1524mm/1829mm; Max width up to 2000mm, adapting to large-area commercial roofing construction and processing efficiency) |
| Length | Customizable (Coil length: 100m-500m, according to commercial project demand; long coil design reduces joint gaps, improves construction efficiency, and reduces material waste) |
| Temper | H32 / H18 (Ideal for commercial roofing; H32 for optimal balance of strength and ductility, H18 for higher structural strength, adapting to large-span and high-wind-pressure commercial roofs) |
| Density | 2.68 g/cm³ (ultra-lightweight, reducing commercial building roof load, lowering construction difficulty and transportation costs for large-area projects) |
| Yield Strength | ≥195 MPa (H32); ≥165 MPa (H18) (meets commercial roofing structural safety requirements, resistant to strong wind, snow load, and external impact) |
| Tensile Strength | ≥260 MPa (H32); ≥215 MPa (H18) (strong toughness, not easy to crack or deform during processing and long-term use, ensuring commercial roof stability) |
| Elongation | ≥15% (H32); ≥3% (H18) (excellent ductility, easy to bend, cut, and form into various commercial roofing profiles, adapting to complex commercial roof designs) |
| Corrosion Resistance | Excellent; 5052 alloy has superior anti-atmospheric corrosion, anti-salt spray, and anti-acid rain performance, suitable for coastal, industrial, and urban commercial environments; no rust, long-term maintenance-free |
| Surface Treatment | Mill Finish, Anodized, Pre-Painted (PVDF/PE); PVDF coating preferred for commercial roofing, meeting AAMA 2605 standards |
| Color (if pre-painted) | Commercial Popular Colors: Silver Gray, Dark Gray, Beige, Bronze, Navy Blue; RAL/PANTONE color matching available, consistent with commercial building design style and brand image |
| Fire Rating | Class A (non-combustible, meets commercial building fire safety standards, protecting commercial property and personnel safety) |
| Application | Special for Commercial Projects Roofing Systems: Shopping Malls, Office Buildings, Commercial Complexes, Hotels, Exhibition Centers, Logistics Warehouses, Airports, Stations |
| Packaging | Wooden Pallet, Film Wrapped, Waterproof Paper Covered; moisture-proof, anti-scratch, and anti-collision, suitable for large-volume commercial order long-distance transportation |
| MOQ | 1 Ton (Negotiable for Bulk Commercial Projects; Sample Available for Testing and Quality Verification) |
Enhanced Structural Rigidity: The 0.040'' gauge provides the necessary stiffness to handle larger spans and heavier loads typical of commercial structures, such as HVAC maintenance traffic and significant snow accumulation.
Ultimate Industrial Durability: 5052 alloy is designed to thrive in harsh environments, including industrial zones with acid rain and coastal areas with heavy salt spray, ensuring a service life of over 50 years.
Large-Scale Efficiency: Despite its thickness, aluminum remains lightweight compared to steel, allowing for faster installation on large-scale projects and reducing the structural weight requirements of the building.
Low Lifecycle Cost: Requires minimal maintenance once installed. The natural oxide layer and premium coatings protect the investment from degradation, making it the most cost-effective long-term roofing solution.
