Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: PPAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 100000 tons per year
Product Name: |

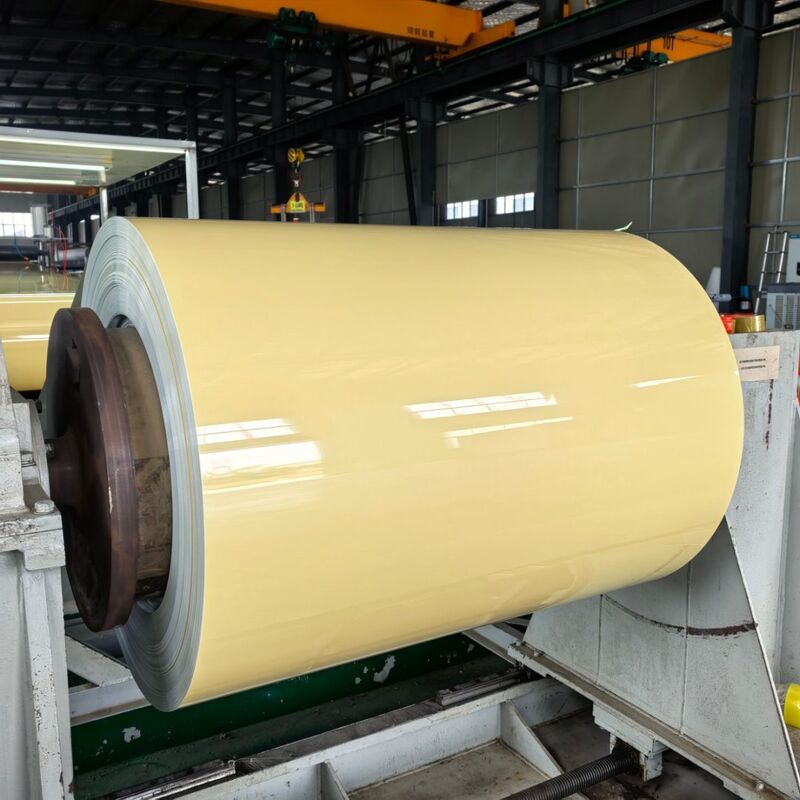

Prepainted Aluminum Coil |
Alloy: |
1050, 1100, 3003, 5052, 5050, 3104 |
Temper: |
H1-H32, T3-T8 |
Thickness Paint Layer: |
PVDF, More Than 25micron |
Type Of Coating: |
PE Or PVDF Mainly |
Thickness Paint Layer PE: |
More Than 18micron |
Product Name: |
Prepainted Aluminum Coil |
Alloy: |
1050, 1100, 3003, 5052, 5050, 3104 |
Temper: |
H1-H32, T3-T8 |
Thickness Paint Layer: |
PVDF, More Than 25micron |
Type Of Coating: |
PE Or PVDF Mainly |
Thickness Paint Layer PE: |
More Than 18micron |
| Item | Specification |
| Alloy Grade | 3003 (Al-Mn Alloy, suitable for commercial roofing with excellent formability and corrosion resistance) |
| Product Type | Pre Painted Aluminium Sheet (Coated Aluminium Sheet, commercial roofing special) |
| Thickness | 0.040'' (1.016 mm, 1 inch = 25.4 mm; optimized thickness for commercial roofing, balancing strength and lightweight) |
| Width | Customizable (Commercial Roofing Common: 4ft/5ft/6ft, 1219mm/1524mm/1829mm; Max width up to 2000mm, adapting to large-area commercial roofing construction) |
| Length | Customizable (Commercial Roofing Common: 10ft/12ft/20ft, 3048mm/3658mm/6096mm; Can be cut to required size to reduce construction waste) |
| Coating Type | PVDF Coating (Fluorocarbon Coating, preferred for commercial roofing) / PE Coating (Polyester Coating); meets AAMA 2605/2604 standards |
| Coating Thickness | Total Coating: 18-28μm (Top Coat: 12-20μm, Primer: 6-8μm); thickened coating for long-term color retention of commercial roofing |
| Color | Customizable (Commercial Roofing Popular Colors: Silver Gray, Dark Gray, Beige, Bronze, Navy Blue; RAL/PANTONE Color Matching Available, consistent with commercial building design style) |
| Surface Finish | Matte, Semi-Matte (preferred for commercial roofing, anti-glare and easy to clean); Glossy optional |
| Temper | H14 / H18 (Ideal for commercial roofing forming; H14 for better ductility, H18 for higher strength, adapting to different roofing profiles) |
| Density | 2.73 g/cm³ (lightweight, reducing commercial building roof load and construction difficulty) |
| Yield Strength | ≥110 MPa (H14); ≥165 MPa (H18) (meets commercial roofing structural strength requirements) |
| Tensile Strength | ≥180 MPa (H14); ≥215 MPa (H18) (resistant to wind pressure and external impact for commercial roofing) |
| Elongation | ≥10% (H14); ≥3% (H18) (easy to form into standing seam, corrugated and other commercial roofing profiles) |
| Weather Resistance | PVDF Coating: ≥25 years color retention; PE Coating: ≥12 years color retention; resistant to UV, heavy rain, strong wind, acid rain, adapting to various commercial building environments |
| Corrosion Resistance | Excellent; 3003 alloy resists atmospheric corrosion, coating enhances resistance to acid, alkali, salt spray (suitable for coastal commercial buildings) |
| Fire Rating | Class A (non-combustible, meets commercial building fire safety standards) |
| Application | Special for Commercial Project Roofing: Shopping Malls, Office Buildings, Hotels, Supermarkets, Exhibition Centers, Commercial Complexes, Logistics Warehouses, etc. |
| Packaging | Wooden Pallet Packaging, Film Wrapped, Waterproof Paper Covered; Custom Packaging Available (suitable for large-volume commercial orders transportation) |
| MOQ | 1 Ton (Negotiable for Bulk Commercial Orders; Sample Available) |
Optimal Thickness for Commercial Use: 0.040'' thickness balances strength and lightweight, suitable for large-span commercial roofing, resistant to wind pressure and external impact, without deformation or damage.
Superior Durability & Long Service Life: PVDF/PE coating with ≥12-25 years color retention, 3003 alloy's excellent corrosion resistance, and Class A fire rating, fully meeting the long-term use requirements of commercial buildings (service life up to 15-25 years).
Easy Construction & High Efficiency: Good ductility, easy to bend, cut and form into various commercial roofing profiles (standing seam, corrugated, flat roofing); lightweight design simplifies on-site installation, shortens the construction period of commercial projects, and reduces labor costs.
Aesthetic Consistency & Customization: A variety of commercial popular colors and surface finishes are available, supporting RAL/PANTONE color matching, which can perfectly integrate with the design style of commercial buildings and enhance the overall grade of the project.
Energy-Saving & Environmentally Friendly: 100% recyclable, conforming to green commercial building standards; the coating can reflect sunlight, reduce indoor temperature, save air conditioning energy consumption, and achieve energy saving and emission reduction goals of commercial projects.
Cost-Effective: Lightweight reduces transportation and construction costs; long service life and low maintenance frequency reduce later operation and maintenance costs, bringing long-term economic benefits to commercial project owners.
Comprehensive commercial buildings: Shopping malls, commercial complexes, pedestrian streets, plazas.
Office buildings: High-rise office buildings, office parks, business centers
Accommodation and catering: Hotels, resorts, high-end restaurants
Public commercial facilities: Exhibition centers, convention centers, stadiums, airports, stations
Logistics and commerce: Large-scale logistics warehouses, distribution centers, retail warehouses
Special commercial projects: Coastal commercial buildings, chemical industry supporting commercial facilities (anti-corrosion demand), cold chain logistics centers (thermal insulation matching)
