Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: Dingang - PPAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 30-45 Days
Payment Terms: L/C at sight or 30% T/T in advance as deposit,and 70% balance against the B/L copy
Supply Ability: 5000 Tons / Per Month
Name: |
Prepainted Aluminium Coil |
Alloy: |
3005 |
Thickness: |
0.5MM |
Width: |
1220MM |
Alloy Or Not: |
Is Alloy |
Application: |
Advertising Signboard |
Sample: |
Available |
Coating Thickness: |
PVDF:Not Less Than 25um PE:Not Less Than 18um |
Recyclable: |
Yes |
Name: |
Prepainted Aluminium Coil |
Alloy: |
3005 |
Thickness: |
0.5MM |
Width: |
1220MM |
Alloy Or Not: |
Is Alloy |
Application: |
Advertising Signboard |
Sample: |
Available |
Coating Thickness: |
PVDF:Not Less Than 25um PE:Not Less Than 18um |
Recyclable: |
Yes |

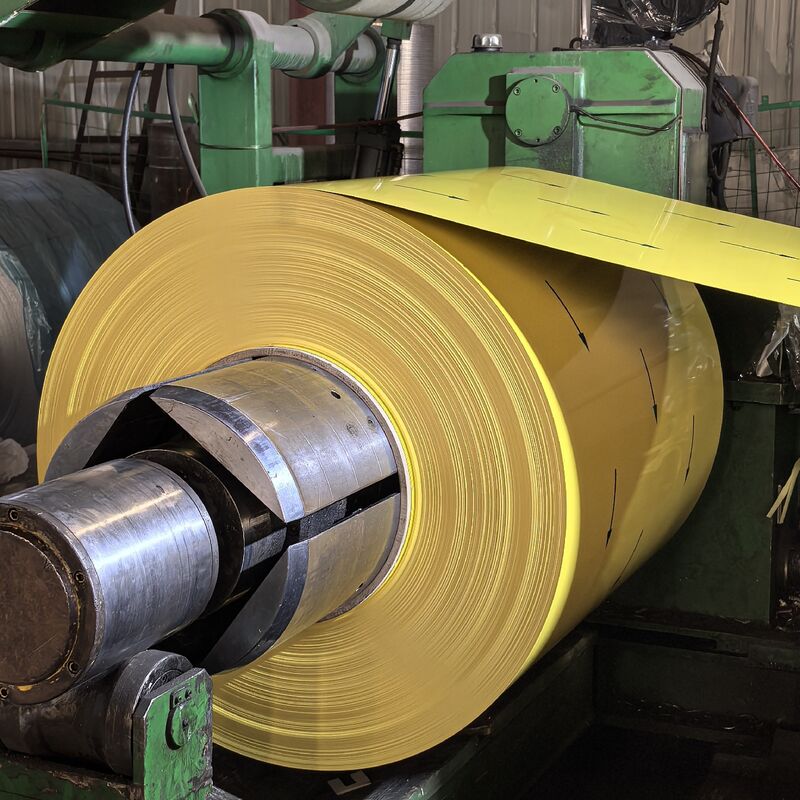

The AA3005 H24 0.5MM prepainted aluminium coil is a professional-grade material engineered specifically for manufacturing advertising signboards. It takes AA3005 aluminium alloy—an Al-Mn series alloy renowned for its rust resistance—as the base, with a substrate thickness of 0.5mm that strikes a perfect balance between sturdiness and processability. The alloy is treated to reach the H24 temper (semi-hard state) via annealing, controlled cold rolling, and stabilization, ensuring it maintains shape stability while allowing flexible fabrication. Its surface is coated with a high-adhesion, weatherproof paint layer (15μm-50μm per side, customizable by demand), which delivers vibrant, long-lasting colors and reliable protection against external environmental factors, making it an ideal choice for both indoor and outdoor advertising signboards.
| Product | Color Coated Aluminum Sheet/Prepainted Aluminium Coil |
| Thickness | 0.1-2.0mm |
| Width | 30-1600mm |
| Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 3 Tons Per Specification |
| Delivery Time | Within 30-45 Days |
| Loading Port | Shanghai,Ningbo,Qingdao,Tianjin Port and Etc |
| Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |
3. Vibrant & Customizable Colors
4. Lightweight & Easy Installation
5. Low Maintenance & Cost-Effective
