Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: PPAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: T/T,L/C
Supply Ability: 5000 Tons / Per Month
Name: |
Cold Rolled Color PE PVDF Pre Painted Aluminium Coil |
Packing: |
Standard Seaworthy Wooden Pallets |
Sample: |
Freely |
Alloy: |
3000series,1100, 5000 Series |
Surface: |
PE Or PVDF |
Type: |
Color Coated Aluminum Sheet/ Coil |
Name: |
Cold Rolled Color PE PVDF Pre Painted Aluminium Coil |
Packing: |
Standard Seaworthy Wooden Pallets |
Sample: |
Freely |
Alloy: |
3000series,1100, 5000 Series |
Surface: |
PE Or PVDF |
Type: |
Color Coated Aluminum Sheet/ Coil |
Product Description

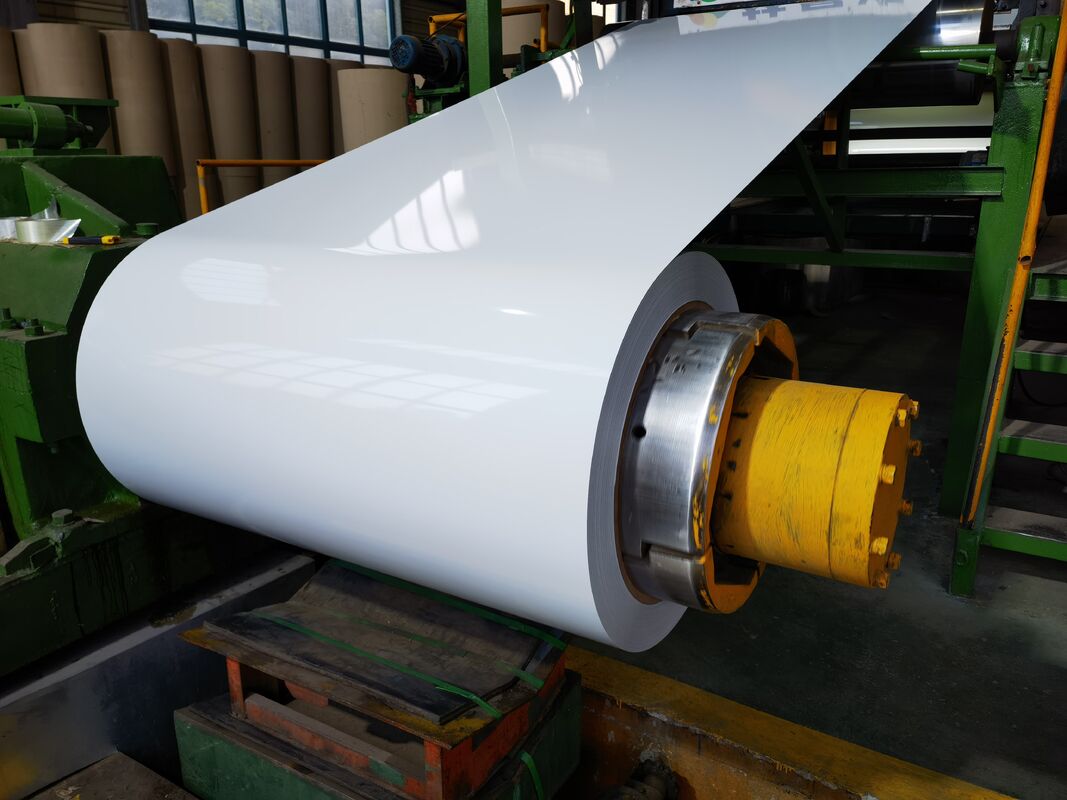

1.3x1220mm (Custom Width) Prepainted Aluminum Coil is tailored for building applications like curtain walls, roofing, and doors. Its 1.3mm thickness ensures structural sturdiness, while 1220mm base width (with custom options) fits diverse project needs. The prepainted layer boosts UV/corrosion resistance, suiting US climates. It offers rich finishes, aligns with LEED standards, and balances durability with workability—ideal for commercial/residential building projects.
Testing data
| Item | Test Item | Performance indicators for PE | Performance indicators for PVDF |
| 1 | Color Difference | ΔE≤2.0 | ΔE≤1.5 |
| 2 | Gloss Difference | ≤5 | ≤5 |
| 3 | Coating Thickness | Two layers Min 23μm | Two layers Min 25μm |
| Three layers Min 30μm | Three layers Min 34μm | ||
| 4 | Pencil Hardness | ≥HB | HB |
| 5 | T-bend | ≤3T | ≤3T |
| 6 | Adhesion | Grade 0 | Grade 0 |
| 7 | Impact | ≥20kg.cm | ≥50kg.cm |
| 8 | Boiling water Resistance | 4h No change | 4h No change |
| 9 | Solvent Resistance | 200 times no break | 200 times no break |
| 10 | Acidity Resistance | 5%HCL 24hrs No change | 5%HCL 24hrs No change |
| 11 | Alkali Resistance | 5%NaOH 24hrs No change colorE≤2.0 | 5%NaOH 24hrs No change colorE≤2.0 |
| 12 | Oil Resistance | 20#oil 24hrs No change | 20#oil 24hrs No change |
| 13 | Salt Spray Resistance | 720hrs ≤Grade 1e | 720hrs ≤Grade 1e |
| 14 | Abrasion resistance | ≥5L/μm | ≥5L/μm |
| 15 | Dirt Resistance | ≤5% | ≤5% |
Advantages
Structural Reliability: 1.3mm thickness ensures sturdiness for building applications (curtain walls, roofing, doors).
Flexible Sizing: 1220mm base width with custom options fits diverse project needs.
Durable Coating: Prepainted layer boosts UV/corrosion resistance, adapting to harsh US climates.
Sustainable & Aesthetic: Low-VOC coating meets LEED standards; rich finishes align with modern designs.
Workable Performance: Balances durability and formability for easy installation in commercial/residential projects.
