Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: 0.2mm×1100mm-3105
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 5000 Tons / Per Month
Name: |
Aluminum Alloy 3105 (0.2mm × 1100mm) For Construction And Packaging |
Alloy: |
3105 |
Thickness: |
0.2mm |
Width: |
1100mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |
Name: |
Aluminum Alloy 3105 (0.2mm × 1100mm) For Construction And Packaging |
Alloy: |
3105 |
Thickness: |
0.2mm |
Width: |
1100mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |

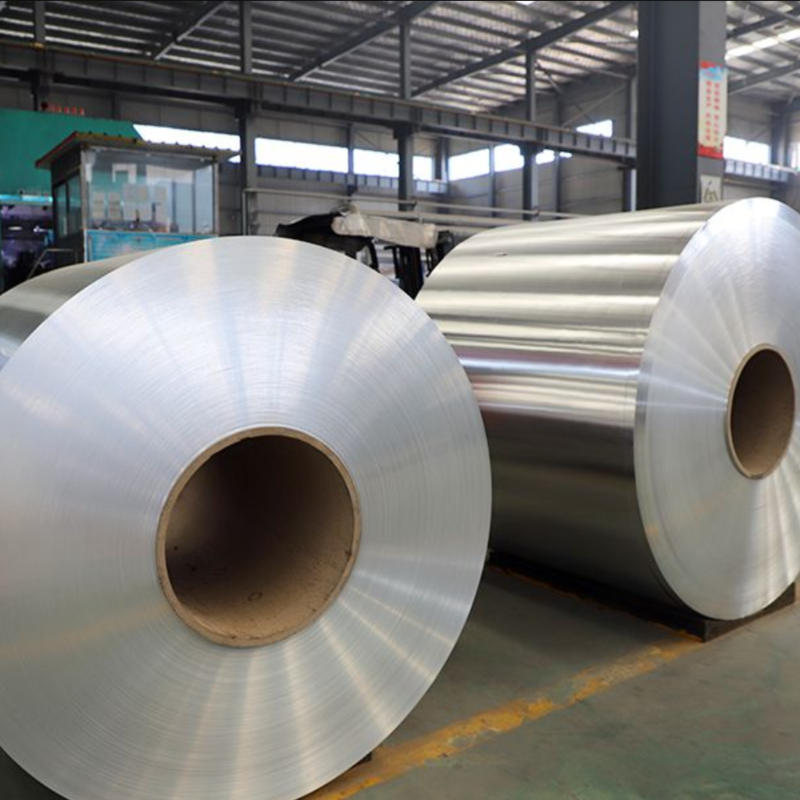

The Aluminum Alloy 3105, with a thickness of 0.2mm and a width of 1100mm, is a non-heat-treatable aluminum alloy in the O-temper (fully annealed), composed of aluminum (97.5-99.0%), manganese (0.3-0.8%), magnesium (≤0.8%), and trace amounts of iron and silicon. Designed for construction (e.g., roofing, siding) and packaging (e.g., beverage cans, foils), it offers high elongation (~20-25%), excellent corrosion resistance, and moderate strength (tensile strength ~115-150 MPa). The O-temper ensures maximum formability for complex forming processes like stamping and roll-forming, while its ultra-thin design (0.2mm) minimizes material use. Its lightweight nature (density ~2.71 g/cm³) enhances efficiency, and its recyclability aligns with sustainable manufacturing goals. The 1100mm width supports high-volume production, meeting the needs of global construction and packaging industries.
Product Parameters:
| Product | Aluminum Alloy 3105 (0.2mm × 1100mm) for Construction and Packaging |
| Thickness | 0.01mm-2.5mm |
| Width | 800-2600mm |
| Material | 3105 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application |
Construction and Packaging |
Core Benefits:
| Advantage | Detailed description |
|
Ultra-Thin Design |
At 0.2mm thickness, it minimizes material use, reducing weight by up to 40% compared to steel, enhancing efficiency and lowering costs. |
|
High Formability |
High elongation (~20-25% in O-temper) enables complex stamping and roll-forming without cracking, ideal for intricate designs in cans and roofing. |
|
Corrosion Resistance |
Its manganese content ensures excellent resistance to moisture, chemicals, and environmental exposure, extending product lifespan in harsh conditions. |
|
Surface Versatility |
Compatible with coatings like anodizing or painting, enhancing aesthetics and durability for visible applications like siding and packaging. |
|
Cost-Effectiveness |
Balances performance and affordability, making it ideal for high-volume production in both industries. |
|
Lightweight Properties |
With a density of 2.71 g/cm³, it reduces structural and transportation loads, improving energy efficiency in construction and packaging. |
The following case studies illustrate the likely applications of Aluminum Alloy 3105 in construction and packaging, based on its properties and inferred use in the industry:
Roofing Panels in the USA: A U.S. construction firm likely used 3105 aluminum for lightweight roofing panels in a Chicago residential project. The ultra-thin design reduced material costs by 15%, while corrosion resistance ensured durability in humid climates.
Beverage Can Production in Germany: A German packaging company probably employed 3105 aluminum for stamping beverage can bodies in a Frankfurt facility. Its high formability supported defect-free production at high speeds.
Siding Panels in China: A Chinese construction company likely used 3105 aluminum for corrosion-resistant siding in a Shanghai commercial building. The alloy’s lightweight and recyclable properties supported sustainable urban development.
Foil Packaging in Australia: An Australian packaging supplier likely adopted 3105 aluminum for recyclable foil packaging in Sydney. Its formability and corrosion resistance ensured reliable performance for food-grade applications.
The Anodized Aluminum 1085 Plate is likely used globally in architectural curtain wall systems due to its compliance with international standards (e.g., ASTM B209, EN 573-3) and its performance in diverse environments. Key applications include:
North America: In the United States and Canada, architectural firms likely use 1085 anodized plates for curtain walls in skyscrapers and commercial complexes, leveraging their high reflectivity and corrosion resistance in cities like New York and Toronto.
Europe: In Germany and the UK, developers probably employ this plate for office and public building facades, benefiting from its low-maintenance anodized finish in humid climates like London and Hamburg.
Asia: In China and Japan, construction firms may utilize 1085 anodized plates for high-rise curtain walls, supporting rapid urbanization in cities like Shanghai and Tokyo.
Middle East and Emerging Markets: In Dubai and Brazil, growing construction sectors likely adopt this plate for its reflective aesthetics and durability in extreme climates, such as in Dubai and São Paulo.
Beyond curtain walls, the alloy’s high purity and reflective finish extend to applications like decorative cladding, signage, and interior accents, showcasing its versatility in global architecture.
The construction and packaging industries are evolving, with several trends shaping the use of 3105 aluminum:
Sustainability: Growing demand for recyclable materials drives the adoption of 3105 aluminum, supporting green building and packaging initiatives (European Aluminium,).
Lightweighting: The focus on reducing material weight in construction and packaging boosts the use of ultra-thin aluminum alloys for efficiency and cost savings (BlueScope Distribution,).
Urbanization: Rapid urban growth in Asia, Latin America, and Africa increases demand for cost-effective, durable materials like 3105 for roofing and siding (Alibaba,).
Advanced Forming Techniques: Innovations in roll-forming and stamping enhance the efficiency of complex designs using 3105 aluminum (ScienceDirect,).
Eco-Friendly Packaging: The rise of sustainable packaging solutions favors recyclable, lightweight alloys like 3105 for cans and foils (Research and Markets,).
Table: Key Trends in Aluminum for Construction and Packaging
|
Trend |
Description |
Impact |
|---|---|---|
|
Sustainability |
Demand for recyclable materials supports green goals |
Increases adoption of 3105 aluminum |
|
Lightweighting |
Reducing material weight for efficiency |
Boosts use of 3105 for construction and packaging |
|
Urbanization |
Urban growth increases material demand |
Expands applications for 3105 aluminum |
|
Advanced Forming Techniques |
Improved stamping and roll-forming efficiency |
Enhances 3105 for complex designs |
|
Eco-Friendly Packaging |
Rise of sustainable packaging solutions |
Favors 3105 for cans and foils |
Transform your construction and packaging projects with the Aluminum Alloy 3105’s ultra-thin, formable, and eco-friendly design. Ideal for lightweight, sustainable roofing, siding, and packaging solutions, this material meets global industry demands. Contact us to explore customization options and create cutting-edge, sustainable solutions. Act now to lead the way in innovative, eco-friendly manufacturing!
