Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: 0.8mm×300mm-1050
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 5000 Tons / Per Month
Name: |
Aluminum Strip 1050 High Conductivity (0.8mm × 300mm) For Transformer Windings |
Alloy: |
1050 |
Thickness: |
0.8mm |
Width: |
300mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |
Name: |
Aluminum Strip 1050 High Conductivity (0.8mm × 300mm) For Transformer Windings |
Alloy: |
1050 |
Thickness: |
0.8mm |
Width: |
300mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |

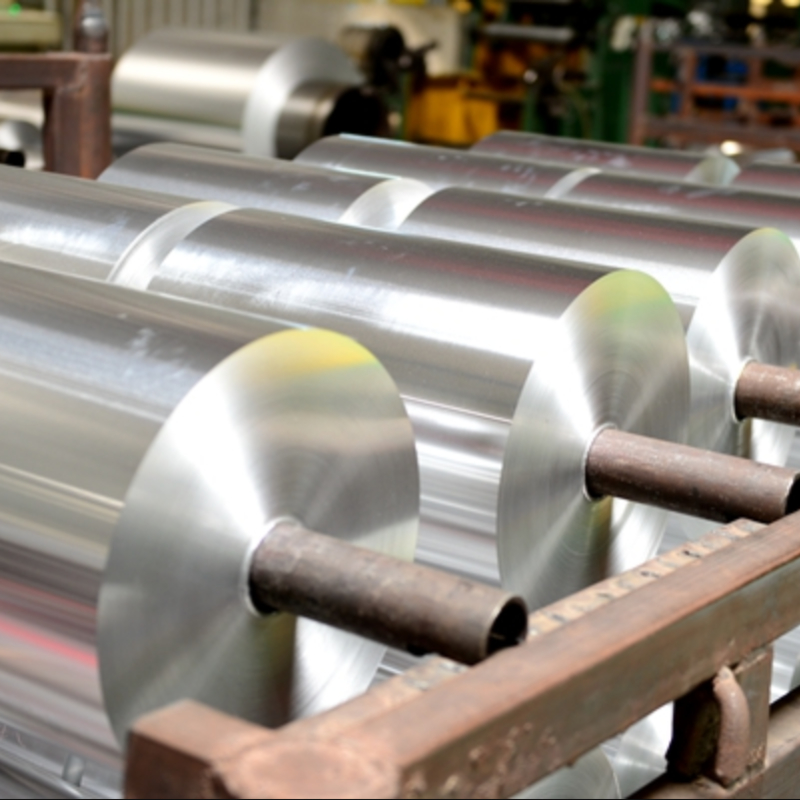

The Aluminum Strip 1050, with a thickness of 0.8mm and a width of 300mm, is a high-purity, non-heat-treatable aluminum alloy composed of at least 99.5% aluminum, with trace amounts of iron, silicon, and other elements. Designed for transformer windings, this strip in O-temper (soft) state offers exceptional electrical conductivity (~61% IACS), thermal conductivity (~230 W/m·K), and formability, making it ideal for high- and low-voltage windings in dry-type and oil-immersed transformers. Its lightweight nature (density of approximately 2.70 g/cm³) reduces transformer weight, improving efficiency and reducing costs compared to copper. The 300mm width and 0.8mm thickness support precise, burr-free coil winding, ensuring minimal energy loss and reliable performance. The strip’s recyclability aligns with global sustainability goals, making it a key material for modern transformer manufacturing.
Product Parameters:
| Product | Aluminum Strip 1050 High Conductivity (0.8mm × 300mm) for Transformer Windings |
| Thickness | 0.01mm-1.0mm |
| Width | 800-2600mm |
| Material | 5083 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application |
Transformer Windings |
Core Benefits:
| Advantage | Detailed description |
|
High Electrical Conductivity |
With a conductivity of ~61% IACS, it ensures minimal energy loss, enhancing transformer efficiency. |
|
High Formability |
Its soft O-temper and high elongation (15-30%) allow for smooth, burr-free winding, reducing coil defects and improving insulation performance. |
|
Corrosion Resistance |
Its natural oxide layer resists moisture and environmental degradation, ensuring durability in humid or outdoor conditions. |
|
High Thermal Conductivity |
With ~230 W/m·K, it improves heat dissipation, preventing hot-spot temperature rise and extending transformer life. |
|
Cost-Effectiveness |
Significantly cheaper than copper, it reduces manufacturing costs by up to 15%, making it ideal for large-scale production. |
|
Lightweight Design |
With a density of 2.70 g/cm³, it reduces transformer weight by up to 30% compared to copper, enabling compact designs and lower transport costs. |
The following case studies illustrate the likely applications of Aluminum Strip 1050 in transformer windings, based on its properties and inferred use in the industry:
Dry-Type Transformers in the USA: A U.S. manufacturer likely used 1050 aluminum strips for dry-type transformers in a commercial building in Chicago. The strip’s high conductivity and lightweight design reduced energy loss by 10% and installation costs, while its recyclability supported sustainability goals.
Oil-Immersed Transformers in Germany: A German power utility probably employed 1050 aluminum strips for oil-immersed transformers in a Berlin distribution network. The strip’s corrosion resistance and thermal conductivity ensured reliable performance in humid conditions, extending transformer life.
Renewable Energy in China: A Chinese renewable energy firm likely used 1050 aluminum for transformer windings in solar inverters in Shanghai. The strip’s cost-effectiveness and high conductivity supported efficient power conversion, reducing project costs.
Industrial Transformers in India: An Indian industrial plant likely adopted 1050 aluminum strips for transformers in a Mumbai factory. The lightweight design and formability enabled compact, durable windings, lowering maintenance costs.
The Aluminum Strip 1050 is likely used globally in transformer manufacturing due to its compliance with international standards (e.g., ASTM B209, GB/T 3198-2010) and its performance in diverse electrical applications. Key applications include:
North America: In the United States and Canada, manufacturers like GE or Siemens likely use 1050 aluminum strips for dry-type transformers in commercial and industrial settings, leveraging their cost-effectiveness and high conductivity in cities like New York and Toronto.
Europe: In Germany and the UK, power utilities probably employ this strip for oil-immersed transformers in distribution networks, benefiting from its lightweight design and corrosion resistance in humid climates like Berlin and London.
Asia: In China and India, firms like TBEA and Larsen & Toubro may utilize 1050 aluminum for transformer windings in renewable energy and urban infrastructure, supporting rapid electrification in Shanghai and Mumbai.
Emerging Markets: In Brazil and Southeast Asia, growing energy sectors likely adopt this strip for its affordability and performance in tropical climates, such as in São Paulo and Bangkok.
Beyond transformers, the alloy’s versatility extends to applications like electrical cables, heat exchangers, and solar reflectors, showcasing its broad applicability in global industries.
The transformer manufacturing industry is evolving, with several trends shaping the use of 1050 aluminum strips for windings:
Sustainability: Growing demand for recyclable materials drives the adoption of 1050 aluminum, supporting green energy and circular economy initiatives.
Lightweighting: Emphasis on compact, efficient transformers boosts the use of lightweight aluminum strips, reducing material and transport costs.
Smart Transformers: Integration of IoT sensors for real-time monitoring requires durable, conductive materials like 1050 aluminum.
Electrification Growth: Rising demand for transformers in renewable energy and electric vehicle infrastructure increases the need for cost-effective materials.
Advanced Processing: Innovations in cold rolling and annealing enhance the strip’s conductivity and edge quality, improving transformer performance.
Table: Key Trends in Aluminum for Transformer Windings
|
Trend |
Description |
Impact |
|---|---|---|
|
Sustainability |
Demand for recyclable materials supports green goals |
Increases adoption of 1050 aluminum strip |
|
Lightweighting |
Focus on compact, efficient transformer designs |
Boosts use of 1050 strip for weight reduction |
|
Smart Transformers |
IoT integration for performance monitoring |
Drives demand for durable, conductive materials |
|
Electrification Growth |
Rising need for transformers in energy sectors |
Expands applications for 1050 aluminum strip |
|
Advanced Processing |
Improved rolling and annealing techniques |
Enhances 1050 strip for performance and quality |
Revolutionize your transformer manufacturing with the Aluminum Strip 1050’s high conductivity, lightweight design, and sustainability. Ideal for efficient, eco-friendly transformer windings, this material meets global energy demands. Contact us to explore customization options and create cutting-edge transformer solutions. Act now to lead the way in innovative, sustainable power technology!
