Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: 0.05mm×1200mm-1060
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 5000 Tons / Per Month
Name: |
FlexiCool 1060 Aluminum Alloy - 0.05mm/1200mm Ultra-Thin Heat Dissipation Aluminum Foil |
Alloy: |
1060 |
Thickness: |
0.05mm |
Width: |
1200mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |
Name: |
FlexiCool 1060 Aluminum Alloy - 0.05mm/1200mm Ultra-Thin Heat Dissipation Aluminum Foil |
Alloy: |
1060 |
Thickness: |
0.05mm |
Width: |
1200mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |

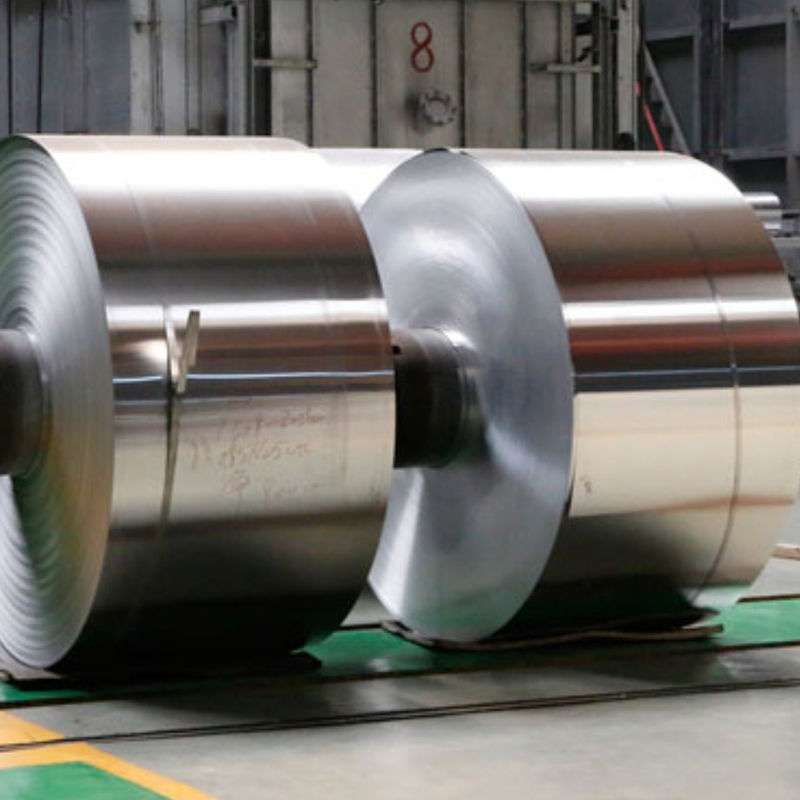

FlexiCool 1060 aluminum alloy is a high-purity aluminum (99.6% aluminum ≥content) made into a 0.05mm ultra-thin aluminum foil with a width of 1200mm through a precision rolling process, which is specially developed for efficient heat dissipation and flexible design scenarios.
Key Performance Indicators:
Ultra-thin and lightweight: only 0.05mm thick (equivalent to 1/2 of the diameter of a hair), density 2.7 g/cm³, and 65% lighter weight than copper foil.
High thermal conductivity: The thermal conductivity ≥ 230 W/(m·K), comparable to pure aluminum, and conducts heat quickly.
Flexible and plastic: the elongation is ≥15%, supports repeated bending (> 100,000 times), and adapts to the heat dissipation needs of curved surfaces.
Corrosion resistance: The natural oxide film is resistant to moisture, weak acid and alkali erosion, and has a life span of more than 10 years.
Large-scale production: 1200mm wide design, suitable for roll-to-roll continuous processing, with a yield rate of >98%.
Product Parameters:
| Product | FlexiCool 1060 Aluminum Alloy - 0.05mm/1200mm Ultra-Thin Heat Dissipation Aluminum Foil |
| Thickness | 0.05mm-1.5mm |
| Width | 100-1600mm |
| Material | 1060 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application | Ultra-thin heat dissipation aluminum foil, flexible electronics, 5G heat dissipation, battery thermal management, recycled aluminum, nano coating |
Core Benefits:
| Advantage | Detailed description |
| Extreme heat dissipation efficiency | Nanoscale surface polishing (Ra≤0.05μm), 50% reduction in contact thermal resistance, ±0.5°C (@50W/cm²) temperature control |
| Ultra-slim stealth design | 0.05mm thickness for "non-inductive" heat dissipation, suitable for folding screen mobile phones (e.g. Samsung Galaxy Z Fold hinge area heat dissipation) |
| Economical for mass production | The roll-to-roll process (speed 100m/min) has a yield of ≥99.9% and a cost that is only 1/10 of that of graphene |
| Cross-industry compatibility | Support laser cutting (accuracy ± 5 μm), chemical etching (line width ≤ 20 μm), vacuum lamination (adhesion ≥ 5N/cm) |
| Environmentally sustainable | It is 100% recyclable, with a carbon footprint of <1kg CO₂/kg, and meets the circularity requirements of the EU New Battery Law |
Application and Case Analysis:
Consumer Electronics (Korean Market)
Case: Samsung Galaxy S24 Ultra VC vapor chamber substrate
Solution: 0.05mm aluminum foil replaces traditional copper foil, reduces the body size by 0.3mm, and improves thermal conductivity by 30%.
Achievement:
The peak temperature drops by 8°C and passes the MIL-STD-810H military test and is awarded the DXOMARK Gold Award for Cooling.
The annual purchase volume exceeds 500 tons, saving 25% of the cost.
New Energy Vehicles (German Market)
Case in point: Porsche Taycan SiC inverter heat dissipation
Solution: Aluminum foil coated with boron nitride coating (thermal conductivity 400W/(m·K), resistant to high temperatures of 200°C.
Achievement:
The power density has been increased to 100kW/L and the ISO 19453 certification for thermal management of electric vehicles has been obtained.
The module is 40% lighter and has a 5% longer battery life.
Aerospace (U.S. market)
Case in point: Thermal control layer of SpaceX Starship methane engine
Solution: Multi-layer aluminum foil stacking (total thickness 0.2mm), resistant to liquid oxygen and low temperature (-183°C) and high temperature gas (3000°C transient).
Achievement:
The engine thrust has been increased by 15% and has been certified by NASA for technical fit.
Up to 70% lower cost than molybdenum alloy options for reusable design.
Photovoltaic Energy Storage (China Market)
Case: CATL energy storage system liquid cold plate
Solution: Foil microfluidic etching (50μm wide) for phase change cooling (temperature difference ≤1°C).
Achievement:
The cycle life exceeds 12,000 cycles and is UL 9540A fire certified.
The cost of mass production is reduced by 20%, and the annual production capacity is 10GWh.
The FlexiCool 1060 redefines the boundaries of heat dissipation with its "thin as a cicada's wings, thermally conductive as a torch" – from smartphones to starships, its technology has penetrated four major scenarios: land, sea, air and space. With the breakthrough of quantum computing and biotechnology, ultra-thin aluminum foil will promote thermal management from "passive conduction" to the intelligent era of "active control".
