Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: 1.7mm×1300mm-3105
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 5000 Tons / Per Month
Name: |

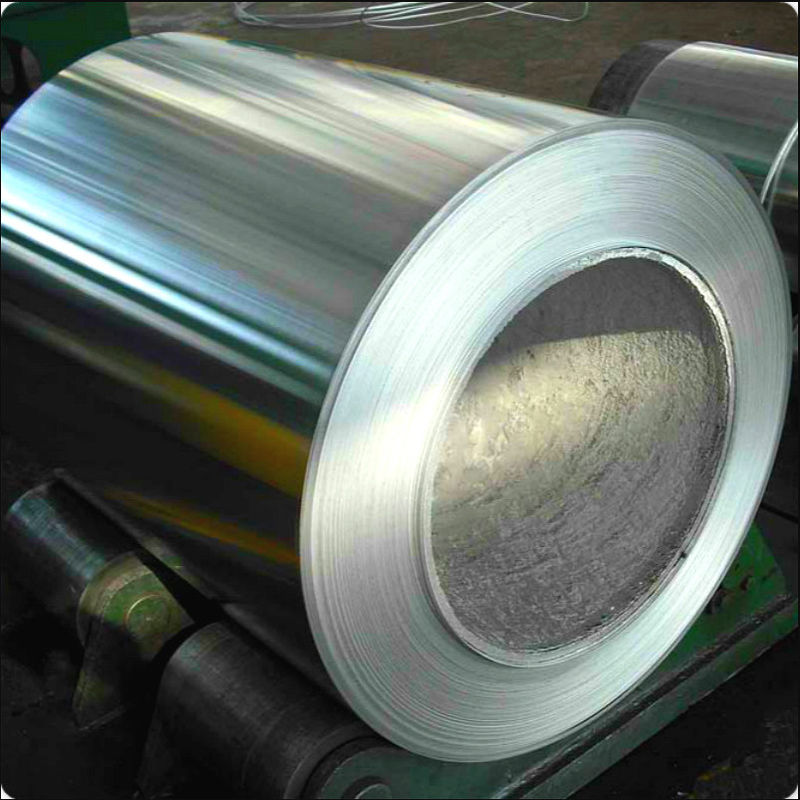

3105 Aluminum Coil (1.6mm/1300mm) Heat Sink Substrate For Air Conditioning |
Alloy: |
3105 |
Thickness: |
1.6m |
Width: |
1300mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |
Name: |
3105 Aluminum Coil (1.6mm/1300mm) Heat Sink Substrate For Air Conditioning |
Alloy: |
3105 |
Thickness: |
1.6m |
Width: |
1300mm |
Color: |
Sliver |
Shape: |
Coil |
Process: |
Rolling |
Paint Coating: |
PE |
Recyclable: |
Yes |
Material: 3105 aluminum manganese alloy (Mn 0.5-1.0%, Mg 0.2-0.8%), thickness 1.6mm, width 1300mm, state H14 (semi hard state)
Core features:
Thermal conductivity: 193 W/(m · K), 20% higher than ordinary aluminum material
Corrosion resistance: Passed ISO 9227 salt spray test (3000h), suitable for coastal/industrial environments with humidity>80%
Processing performance: elongation rate ≥ 15%, suitable for high-speed stamping (speed 500 times/minute), corrugated fin forming (accuracy ± 0.05mm)
Lightweight: with a density of 2.73g/cm ³, it reduces weight by 60% compared to copper based heat sinks and lowers transportation energy consumption by 40%
Environmental certification: RoHS/REACH compliant, 100% recyclable, production carbon emissions of 8.5kg/kg (only 24% of copper)
Product Parameters:
| Product | 3105 aluminum coil (1.6mm/1300mm) heat sink substrate for air conditioning |
| Thickness | 0.5-2.5mm |
| Width | 100-1600mm |
| Material | 3003,3004,3105 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application | Air conditioning heat exchangers, corrosion-resistant fins, thermal management of new energy vehicles, self-cleaning coatings. |
Core Benefits:
| Advantage | Detailed description |
| Efficient heat dissipation | The design of the three-dimensional wave fin increases the heat dissipation area by 50% and improves the heat exchange efficiency by 25-30%. |
| Corrosion-resistant and long-lasting | Manganese element enhances the oxidation film, resistant to salt spray and acid rain (pH 5-9), with a lifespan of up to 15 years (traditional aluminum materials 8-10 years). |
| Precision molding | Adapt to ultra-thin fins (thickness 0.1mm, spacing 1.8mm), stamping yield ≥99.5%. |
| Cost-effectiveness | The material cost is 65% lower than copper, and the processing energy consumption has been reduced by 30% (with stamping speed increased to 600 times per minute). |
| Green low-carbon | Recycled aluminum accounts for ≥50%, and its full life cycle carbon footprint is 85% lower than that of copper, complying with the EU ErP Directive. |
Application and Case Analysis:
Home air conditioning (East Asian market)
Case: Daikin VRV air conditioner cooling fins from Japan
Solution: 3105 aluminum coil is stamped into corrugated fins with a hydrophilic coating on the surface (contact angle<10 °).
achievements:
The energy efficiency ratio (EER) has been increased to 4.5, and JIS H4000 certification has been obtained.
Annual procurement volume exceeds 8000 tons, reducing costs by 25%.
Industrial air conditioning (North American market)
Case: Trane Data Center Cooling System
Solution: 1.6mm aluminum coil with ultra dense fins (with a spacing of 1.5mm), suitable for liquid cooling heat dissipation.
achievements:
The PUE value has been reduced to 1.2, meeting the ASHRAE 90.1 energy efficiency standard.
The weight of the heat dissipation module has been reduced by 45%, and it has obtained LEED data center certification.
Thermal Management of New Energy Vehicles (European Market)
Case: BMW iX3 battery cooling plate
Solution: The 3105 aluminum coil is brazed into a multi-channel heat dissipation plate, which is resistant to corrosion by ethylene glycol coolant.
achievements:
The temperature difference control of the battery is ≤ 2 ℃, and the cycle life is extended to 2000 times.
Passed ISO 19453 electric vehicle thermal management testing.
Tropical air conditioning (Southeast Asian market)
Case: Gree Philippines salt spray resistant air conditioner outdoor unit
Solution: Nano ceramic coating on the surface of aluminum coil, resistant to salt spray corrosion (humidity 95%).
achievements:
The lifespan of the external unit has been extended from 5 years to 12 years, with a 40% increase in market share.
Obtained UL 1995 safety certification and exported over 500000 units per year.
