Product Details
Place of Origin: China
Brand Name: Dingang
Certification: ISO SGS
Model Number: Aluminum coil
Payment & Shipping Terms
Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: Standard seaworthy packing
Delivery Time: 20 days after order comfirmed
Payment Terms: L/C, T/T
Supply Ability: 100000 tons per year
Top Coating Thickness: |
30um |
Thickness Tolarance: |
+/-0.02mm |
Coating Tyle: |
Polyester |
Grade: |
1000-8000 Series |
Specification: |
Customization |
Paint Coating Type: |
PE,Pvdf |
Top Coating Thickness: |
30um |
Thickness Tolarance: |
+/-0.02mm |
Coating Tyle: |
Polyester |
Grade: |
1000-8000 Series |
Specification: |
Customization |
Paint Coating Type: |
PE,Pvdf |
Long lasting wall finishes Coated aluminum sheet in coil
Product Description
Coated aluminum sheet in coil for forming wall and cladding is a specialized material used in the construction industry for exterior wall coverings and cladding systems. This type of aluminum sheet is coated with a protective and/or decorative layer, which not only enhances its durability but also improves its aesthetic appeal.
The aluminum sheet is supplied in a coiled format, which allows for easier handling, transportation, and storage. This coiled form also makes it suitable for continuous processing on industrial equipment, enabling efficient and precise fabrication of wall and cladding panels.
The coating on the aluminum sheet serves multiple purposes. It can provide resistance to corrosion and weathering, protecting the underlying metal from damage caused by exposure to the elements. Additionally, the coating can add a decorative finish, such as a specific color or texture, that enhances the visual appearance of the wall or cladding system.
For wall and cladding applications, the aluminum sheet is formed into panels or sheets that can be easily installed on building façades. These panels can be customized in terms of size, shape, and finish to meet the specific design requirements of a project. The lightweight nature of aluminum, combined with its durability and corrosion resistance, makes it a popular choice for exterior wall coverings.
Overall, coated aluminum sheet in coil for forming wall and cladding is a high-performance material that offers a combination of durability, aesthetics, and ease of installation. It is widely used in commercial and residential construction projects, as well as in renovation and retrofit applications, to create attractive and long-lasting exterior wall finishes.
Product Detail
Product | color coated aluminum coil |
Thickness | 0.2-2.5mm |
Width | 30-1600mm |
Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
Inner Diameter | 405mm,505mm,150mm,etc. |
Color | RAL, Pantone Color Or As Alient's Demand |
Coating thickness | PVDF Paint Coating: Not Less Than 25um |
PE Paint Coating : Not Less Than 18um | |
Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
MOQ | 2 Tons Per Specification |
Delivery Time | Within 20 Days |
Loading Port | Shanghai Port |
Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |
Product Advantages
1. Durability and Corrosion Resistance: The aluminum sheet, coupled with its protective coating, exhibits excellent durability and resistance to corrosion. This ensures that the wall and cladding system maintains its integrity and appearance over time, even in harsh weather conditions.
2. Lightweight: Aluminum is a lightweight material, which reduces the overall structural load on the building. This makes it easier to handle and install, while also contributing to cost savings in terms of transportation and support structures.
3. Versatility and Customizability: The aluminum sheet can be easily formed into various shapes and sizes to meet specific design requirements. Additionally, the coating can be customized to achieve desired finishes, colors, and textures, allowing for a wide range of aesthetic options.
4. Energy Efficiency: Coated aluminum sheets can contribute to improved energy efficiency by reflecting solar radiation and reducing heat absorption. This can help lower cooling costs and enhance the overall thermal performance of the building.
5. Ease of Maintenance: The coated surface of the aluminum sheet is smooth and non-porous, which makes it resistant to dirt and stains. This simplifies cleaning and maintenance, keeping the wall and cladding looking fresh and new for longer.
6. Sustainability: Aluminum is a recyclable material, making it a sustainable choice for building construction. The coated aluminum sheet can be recycled at the end of its useful life, reducing waste and environmental impact.
7. Cost-Effectiveness: While the initial cost of coated aluminum sheet may be higher than some other materials, its long-term durability, low maintenance requirements, and energy efficiency often lead to overall cost savings over the lifetime of the building.

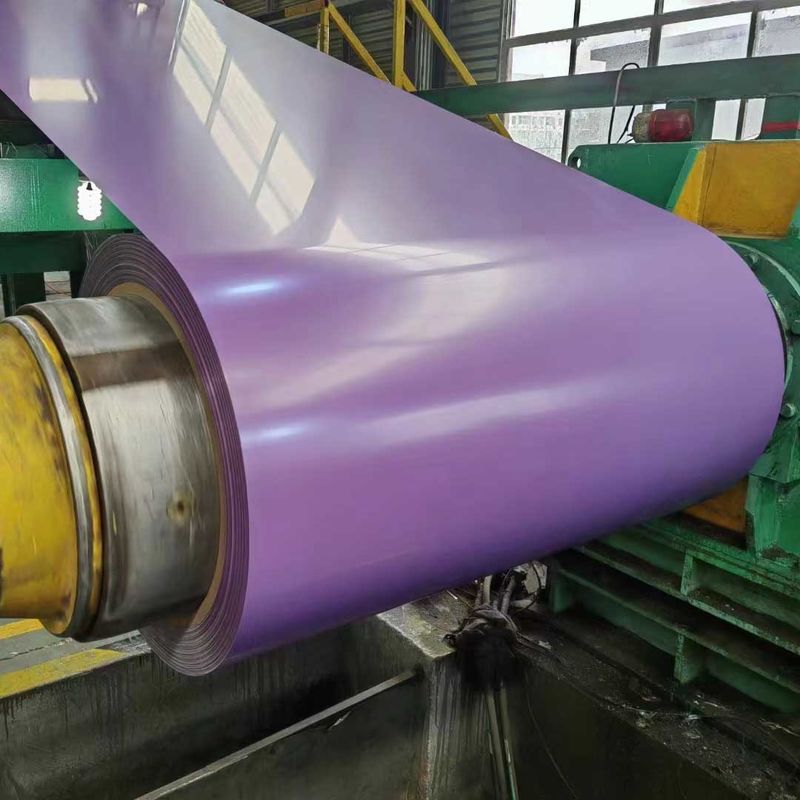

Product Photos:
