3003 H14 White Color 0.50mm thickness Prepainted Aluminum Coil Color Coating Aluminium Coil Used For Gutter

Name: 3003 H14 White Color 0.50mm thickness Prepainted Aluminum Coil Color Coating Aluminium Coil Used For Gutter
Brand: Changzhou Dingang Metal Material Co.,Ltd.
SKU: Prepainted Aluminium Coil
Price: 3,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Dingang

Certification: ISO,BV,SGS,ITS

Model Number: Prepainted Aluminium Coil

Payment & Shipping Terms

Minimum Order Quantity: 5 Metric Tons

Price: Negotiable

Packaging Details: Seaworthy Packing With Wooden Pallet ( Eye To Sky Or Eye To Wall Packing)

Delivery Time: 30 Days After Order Confirmed And 30% Down Payment Received

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000 Metric Tons/Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Color Coating Prepainted Aluminum Coil, 0.50mm Prepainted Aluminum Coil, 3003 Prepainted Aluminum Coil


Base Metal:	3003 Alloy,3004 Alloy,3105 Alloy,5052 Alloy	Coil Inner Diameter:	Φ508mm Or Φ610mm
Coil Weight:	1-2 Ton	Coil Width:	600~2500mm
Paint Color:	Ral Color Card Or Customized	Paint Thickness:	>18um
Paint Type:	PE, HDP, SMP, HPC, PVDF	Pencil Hardness:	≥HB
Temper:	O-H112	Thickness:	0.2-2.50mm

Base Metal:	3003 Alloy,3004 Alloy,3105 Alloy,5052 Alloy
Coil Inner Diameter:	Φ508mm Or Φ610mm
Coil Weight:	1-2 Ton
Coil Width:	600~2500mm
Paint Color:	Ral Color Card Or Customized
Paint Thickness:	>18um
Paint Type:	PE, HDP, SMP, HPC, PVDF
Pencil Hardness:	≥HB
Temper:	O-H112
Thickness:	0.2-2.50mm

3003 H14 White Color 0.50mm thickness Prepainted Aluminum Coil Color Coating Aluminium Coil Used For Gutter

3003 H14 White Color 0.50mm thickness Prepainted Aluminum Coil Color Coating Aluminium Coil Used For Down Gutter

Color Coating Aluminium Coil Parameters:

Alloy: 3003,3005

Temper:H14,H16,H24, H26

Paint Coating Thickness Scope: 0.024mm~1.5mm

Color Coating Aluminium Coil Coating & Slitting Width Scope: 15mm~2650mm

Popular Color: White, Anthracite Grey, Silver, Brown ... Or As Per The Ral or Pantone Colors

We can follow any color of RAL K5 & K7, Pantone, or clients’customized color sample pieces

Edge burrs of painted aluminium stripes: Edge burrs must not cause problems in the production and they must be as small as possible.

3003 H14 White Color 0.50mm thickness Prepainted Aluminum Coil Color Coating Aluminium Coil Used For Gutter 0

Polyester Paint Properties of Color Coating Aluminium Coil:

Performance Test
No.	Test Item	Standard	Test Result	Test Standard
1	Gloss Difference	≤10°	Pass	GB/T22412
2	Color Difference	△E＜2.0	Pass	GB/T22412
3	Coating Thickness	20±2μm	Pass	GB/T22412
4	T-Bending	≤1T coating no cracking	Pass	GB/T22412
5	Boil water resistance	2hr no change	Pass	GB/T22412
6	Solvent resistance(MEK)	≥100 times no change	Pass	GB/T22412
7	Adhesion	0 grade	Pass	GB/T22412
8	Impacting resistance	No cracking(30kg.cm)	Pass	GB/T22412
9	acid endurance(5%HCL)	24hrs no forthy	Pass	GB/T22412
10	alkali resistance(5%NaOH)	24hrs no forthy	Pass	GB/T22412
11	Oil resistance(20＃engine oil)	24hrs no forthy	Pass	GB/T22412

Ordering & Packing

Minimum Order Quantity(MOQ)	1~5MT each spec.
Essential info. for an inquiry	Alloy&temper, size including thickness, width, coating type
Aluminium material can be provided as coils, stripes, slats according to clients requirement

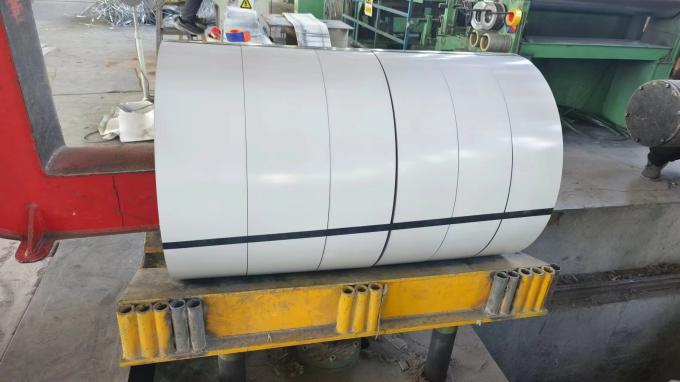

Painted aluminium coils Packing
Inner Core material	Paper Core
Inner Core Diameter	405 / 505mm
Outer packing material	Paperboard
Wooden pallet for Ocean transportation with wooden runners between each pan

微信图片_20230310162536

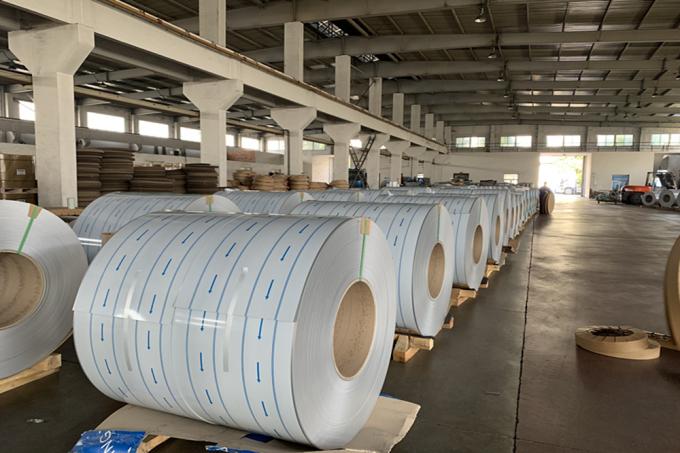

Painted Aluminium Coils Production Capacity:

100, 000tons/year for eight auto-production lines

Country & Regin exported:

Canada,USA,Austrial,Netherlands,Germany,Korea,Japan,India,Indoneisa,Russia and so on.

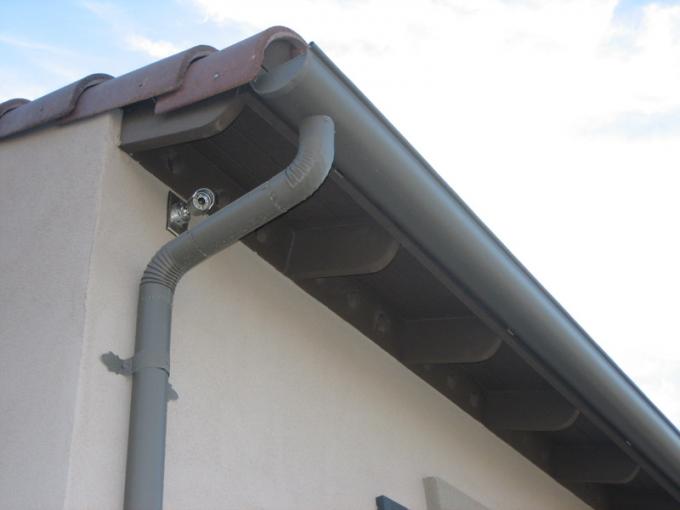

Applications of painted aluminium coils:

Painted Aluminum K Style Gutters, Painted Aluminum Half Round Reverse Bead Gutters, Painted Aluminum Half Round Gutters Single Bead Gutters, Eavestroughs and Sidings

彩铝天沟
