Home ProductsPrepainted Aluminium Coil

Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications

Certification
China Changzhou Dingang Metal Material Co.,Ltd. certification
China Changzhou Dingang Metal Material Co.,Ltd. certification
Customer Reviews
Really a good place for Colored Aluminum, specially aluminum coils, we are fully satisfied with the product’s price because of its total value for money.

—— Daniel

Dingang is one of the best aluminum coil manufacturers. We bought so many aluminum coils from Dingang. The price and quality is better than other companies.

—— Kathy

Dingang’s aluminum material is world class. I have experienced that their products are extremely trusted worthy. They have good business ethics.

—— John

I'm Online Chat Now

Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications

Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications
Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications
Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications

Large Image :  Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications

Product Details:
Place of Origin: China
Brand Name: Dingang
Certification: MTC
Model Number: Color Coated Aluminum Coil
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: USD3350 /ton
Packaging Details: Standard seaworthy package with wooden pallet
Delivery Time: 15 workdays
Payment Terms: L/C, T/T
Supply Ability: 100000 tons per year

Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications

Description
Anodized Thickness: 5-25 Micron Coil Width: 600~1600mm
Paint Color: Ral Color Card Or Customized Type: Coil Or Plate
Market: Brazil, Canada,Africa, Thailand Surface: PE Coated,PVDF
Coil Core: Paper Or Aluminum Bending Resistance: ≥100mm
Edge: Slit Edge Elongation: ≥2%
Painting Thickness: Topside: 25um-28um, Backside: 8um-10um
Highlight:

SPTE Electrolytic Tinplate Sheet

,

Cans Electrolytic Tinplate Sheet

,

SPCC ETP Tin Plate





Introduction



Color coated aluminum coil refers to an aluminum coil that has been coated with a layer of paint or a protective coating in various colors. This coating is applied to the surface of the aluminum coil through a process known as coil coating or pre-painting. The purpose of color coating aluminum coils is to enhance their aesthetics, provide additional protection, and allow for customization in various applications.





Specification



Product Name Pre-painted aluminum coil
Grade 1000 ,2000, 3000, 5000 series
Thickness 0.2mm-2.5mm
Width Max 1600mm
Length According to weight
Painting
Thickness
Top side: 10-25microns;
Primer: 5~7microns.
Back side:5~12microns.
Color RAL color Or as customer's sample
Coil ID 508mm
Packing waterproof paper+plastic film+iron packing+bundling,
or as per customers request.
Application Corrugated steel sheet,refrigeration,cold storage,door panel,sandwich panel,
writing board, shipping
Delivery Time 15 days after received pre-payment
Min Order 2 Mt for common sizes






Product Detail Temper:



Variety Alloy Temper Size(mm) Adopted Standard
Thickness Width
Hot rolled coil 1x3x5x8x series OFH112 2.5~7.0 900~1700 GB/T16501
Stock for micron foil 1235 H14 0.25~0.50 900~1500 EL/X79
EL/X24
Coating sheet 1x3x5x series H14H16H18H22H24H26 0.18~0.75 1200~1550 EL/X260
Curtain coil 11003003 H12H22H24H26 1.5~3.0 1000~1500 SWA/X2402
50055052 H22H24H32H34
Lithographic coil 1050 H18 0.23~0.28 650~1500 YS/T421
EL/X251
Can stock 3104 H19 0.28~0.31 1000~1550 YS/T435
Ceiling stock 1x3x series H14H24H16H26 0.4~1.0 200~1450 X/SWA21211
50055052 H24H22
Bottle lids stock 8011 H16H18 0.20~0.30 500~1550 YS/T91
EL/X273
Coil for Al-composite pipe 1x3x8x series OH22 0.2~1.5 30~1550 YS/T434
Other coils 1x3x8x series and 50055052 OH1xH2x 0.20~6.0 60~2400 GB/T8544
EL/X246
5x series OH1xH2xH3x 0.3~4.0 900~2000
2x6x series OH18 0.5~4.0 900~1800
Remark:coil inner diameter for 405505605mm could be supplied,maximum coil outer diameter is 1750mm.



Coating type



Paint coating: Paint coatings are applied to aluminum coil using spray painting, roll coating, or other painting methods. These coatings can be either organic or inorganic and can provide good color retention, corrosion resistance, and durability. Paint coatings can be applied in a wide range of colors and finishes to meet specific design requirements.


Powder coating: Powder coating is a type of dry coating that is applied to aluminum coil using electrostatic spraying. The powder is then fused onto the surface of the aluminum coil through heating, forming a smooth and uniform coating. Powder coatings are durable, scratch-resistant, and have good color retention.


Anodizing: Anodizing is an electrochemical process that converts the surface of aluminum into a durable oxide film. This oxide film can be dyed to achieve different colors and provides corrosion resistance, wear resistance, and scratch resistance. Anodizing is often used to create a decorative finish on aluminum coil.


PVC coating: PVC (polyvinyl chloride) coating is a type of plastic coating that is applied to aluminum coil using extrusion or lamination methods. PVC coatings are flexible, waterproof, and have good chemical resistance. They are often used in building materials, such as aluminum composite panels, to provide durability and protection against weathering.



Surface Finish



The surface finish of color-coated aluminum coil refers to the texture, gloss, and appearance of the coating applied to the aluminum surface. The surface finish can vary depending on the coating type, coating process, and desired aesthetics. Here are some common surface finishes for color-coated aluminum coil:

Glossy finish: A glossy finish is achieved when the coating is applied with a high gloss level, resulting in a shiny and reflective appearance. Glossy finishes are commonly used for decorative purposes, such as architectural facades and exterior cladding, to create a vibrant and modern look.

Matte finish: A matte finish has a low gloss level and appears dull or flat. It provides a more subdued and uniform appearance, without the shiny reflections of a glossy finish. Matte finishes are often preferred for indoor applications or where a low-maintenance and non-reflective surface is desired.

Textured finish: Textured finishes introduce a specific pattern or design to the surface of the color-coated aluminum coil. This can be achieved by using different coating techniques, such as embossing, rolling, or printing, to create a unique and decorative appearance. Textured finishes are often used for architectural applications, such as cladding and facades, to add visual interest and depth.

Brushed finish: A brushed finish is created by using a brushing tool to remove small amounts of the coating, revealing the bare aluminum beneath. This process creates a subtle, linear pattern on the surface, giving it a soft and elegant appearance. Brushed finishes are popular for interior applications, such as architectural trim and door frames.





Our sale service


1.Sample can be offered .
2.We have 30 years experience of manufacture  steel material, we cherish every order from our honor.
3. We have full stock,and can deliver within short time.Many styles for your choices.
4.OEM and ODM order are accepted, Any kind of logo printing or design are available.
5.Good Quality + Factory Price + Quick Response + Reliable Service
6.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.





After choose us


1.We will count cheapest shipping cost and make invoice at once.
2.Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.



After sale service


1. We are very glad that customer give us some suggestion for price and products.
2. If any questions, please contact with us free by E-mail or Telephone.







Warehouse

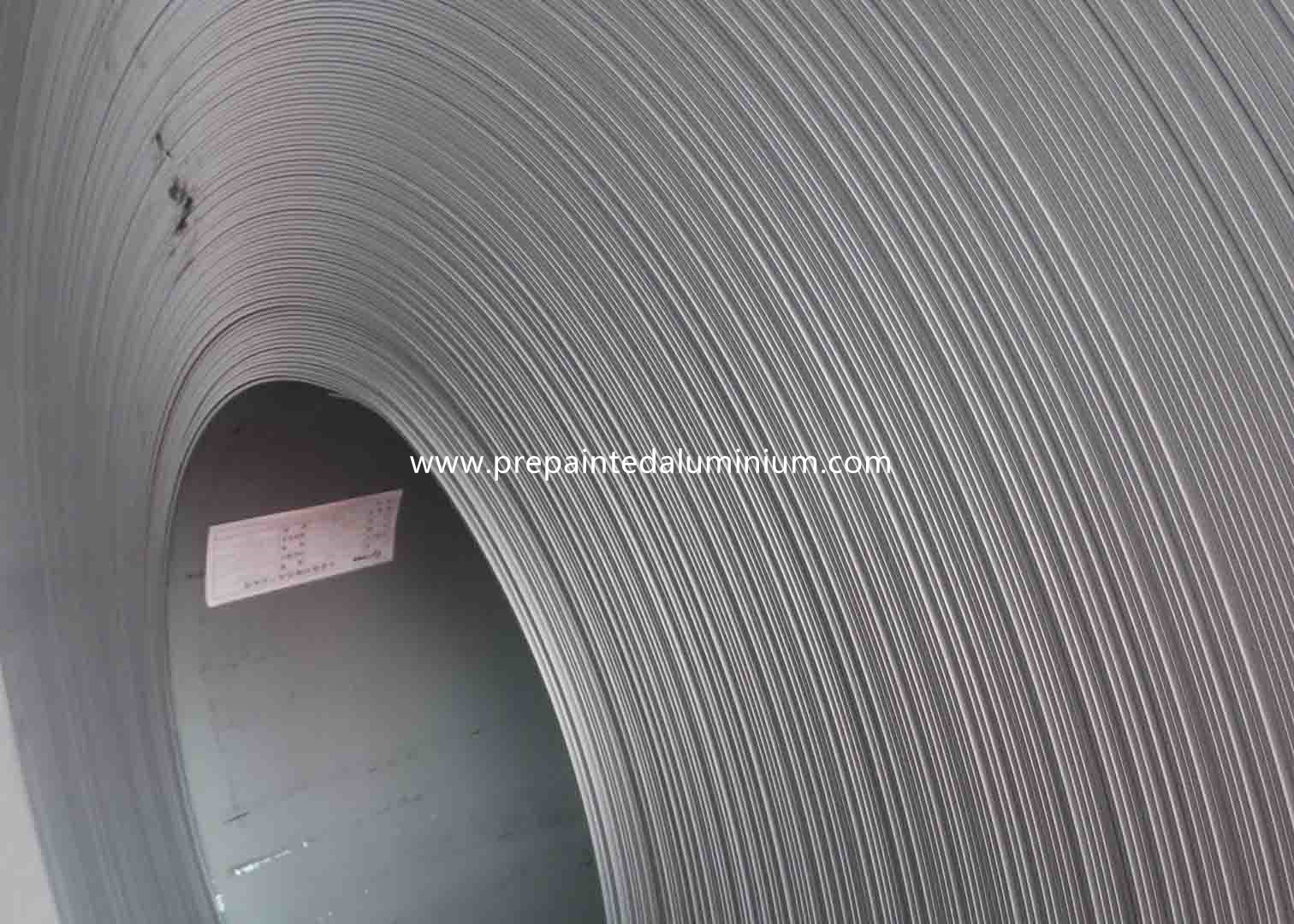

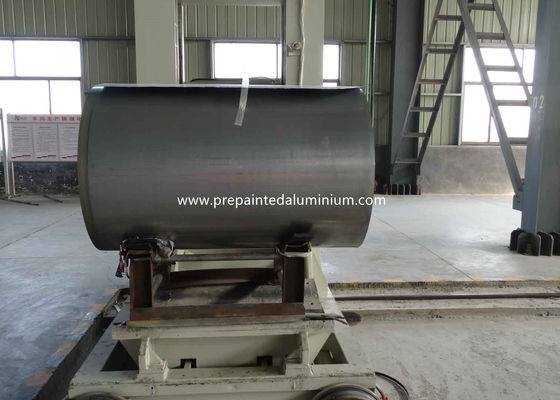

Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications 0
Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications 1



Colorful Prepainted Aluminium Coil for Aesthetic Appeal and Protection in Different Applications 2
