Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: Dingang -PAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: T/T,L/C
Supply Ability: 5000 Tons / Per Month
Product Name: |
Aluminium Plain Sheet |
Standard: |
GB/T3880-2006, EN485-2007, GB/T3190-2008, ISO 209-2007 |
Aluminum Alloy: |
1060,1085,1100,3003,3004,3005,5052,8011 And Etc |
Temper Status: |
O,H14,H18,H24 And Etc |
Aluminum Thikckness: |
0.01-3.00mm |
Aluminum Width: |
30-2500mm |
Tolerance: |
Thickness:+/-0.05mm,Width:+2/-2mm |
Color: |
Original |
Product Name: |
Aluminium Plain Sheet |
Standard: |
GB/T3880-2006, EN485-2007, GB/T3190-2008, ISO 209-2007 |
Aluminum Alloy: |
1060,1085,1100,3003,3004,3005,5052,8011 And Etc |
Temper Status: |
O,H14,H18,H24 And Etc |
Aluminum Thikckness: |
0.01-3.00mm |
Aluminum Width: |
30-2500mm |
Tolerance: |
Thickness:+/-0.05mm,Width:+2/-2mm |
Color: |
Original |

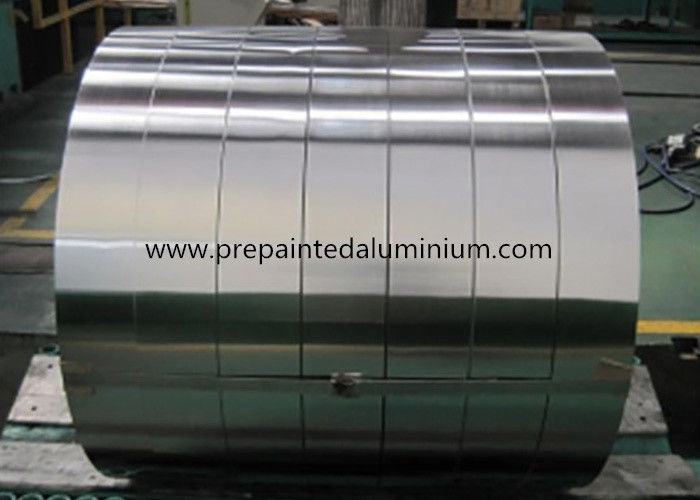

Plain Aluminum Sheet / Strip 5182 H19 / 5052 H19 For Cans / Kitchen Utensils
Profile :
Aluminum Strip for can lids and rings are the first class quality covering rings for soft drink cans . We use the high quality plain aluminum alloy 5182 H19 / 5052 H19 as raw materials ,thickness from 0.22 mm to 0.45 mm , width from 25 - 1600 mm , processed with Henkel chemical bath in cleaning and coated with PPG food pro epoxy resin ( primer coating 7570 - 316A , 12 g . Out coating 2066 -802A , 2 - 4 g ) . For the outer food wax cover , we wrapped by vaseline ( import from America ) as food wax cover .
Aluminum coil ( strip ) details :
1 ) Temper of Aluminum coil ( strip ) : H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O etc.
2 ) Alloy of Aluminum coil ( strip ) :
1 series 1100 , 1050 , 1060 , 1070 ,
3 series 3003 , 3105 , 3005 ,
5 series 5052 , 5754 , 5082 , 5083
6 series 6063 , 6061
3 ) Sheet Specification of Aluminum Coil(Strip): Thickness: 0.10mm--10mm, Width of Aluminum Coil(strip): Less than 2400mm, according to clients' specifications
4 ) Packing of Aluminum coil(strip): Export standard, wooden pallet in horizen or vertical
5 ) Origin Aluminum coil(strip): China
6 ) Mininum order quantity of Aluminum coil(strip): 5 tons per size
7 ) Lead Time of Aluminum tread plate: Within 20 days
8 ) The term of payment of Aluminum coil ( strip ) : T/T, irrevocable L/C at sight
9 ) Application of Aluminum coil(strip): Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate, aluminum plastic base plate, aluminum curtain wall base plate, aluminum composite panel base plate, aluminum spacer, aluminum embossed sheet, aluminum tread plate
10 ) Remarks of panel base plate: Specific requirement of alloy, temper or specification can be discussed at your request.
| Variety | Alloy | Temper | Size ( mm ) | Adopted Standard | |
| Thickness | Width | ||||
| Hot rolled coil | 1x 3x 5x 8x series | O F H112 | 2.5 ~ 7.0 | 900 ~ 1700 | GB / T16501 |
| Stock for micron foil | 1235 | H14 | 0.25 ~ 0.50 | 900 ~ 1500 | EL / X79 EL / X24 |
| Coating sheet | 1x 3x 5x series | H14 H16 H18 H22 H24 H26 | 0.18 ~ 0.75 | 1200 ~ 1550 | EL / X260 |
| Curtain coil | 1100 3003 | H12 H22 H24 H26 | 1.5 ~ 3.0 | 1000 ~ 1500 | SWA / X2402 |
| 5005 5052 | H22 H24 H32 H34 | ||||
| Lithographic coil | 1050 | H18 | 0.23 ~ 0.28 | 650 ~ 1500 | YS / T421 EL / X251 |
| Can stock | 3104 | H19 | 0.28 ~ 0.31 | 1000 ~ 1550 | YS / T435 |
| Ceiling stock | 1x 3x series | H14 H24 H16 H26 | 0.4 ~ 1.0 | 200 ~ 1450 | X / SWA21211 |
| 5005 5052 | H24 H22 | ||||
| Bottle lids stock | 8011 | H16 H18 | 0.20 ~ 0.30 | 500 ~ 1550 | YS / T91 EL / X273 |
| Coil for Al-composite pipe | 1x 3x 8x series | O H22 | 0.2 ~ 1.5 | 30 ~ 1550 | YS / T434 |
| Other coils | 1x 3x 8x series and 50055052 | O H1x H2x | 0.20 ~ 6.0 | 60 ~ 2400 | GB / T8544 EL / X246 |
| 5x series | O H1x H2x H3x | 0.3 ~ 4.0 | 900 ~ 2000 | ||
| 2x 6x series | O H18 | 0.5 ~ 4.0 | 900 ~ 1800 | ||
| Remark : coil inner diameter for 405 505 605mm could be supplied , maximum coil outer diameter is 1750mm . | |||||
Specifications of Aluminum Plain Sheet :
| Standard | GB / T3880-2006 , EN485 - 2007 , GB / T3190 - 2008 , ISO 209 - 2007 |
| Aluminum Alloy | 1060 , 1085 , 1100 , 3 003 , 3004 , 3005 , 5052 , 8011 And Etc |
| Temper Status | O , H14 , H18 , H24 And Etc |
| Material Thickness | 0.01 - 3.00 mm |
| Material Width | 30 - 2500 mm |
| Coil Internal Diameter | 405 mm , 505 mm , 605 mm |
| Tolerance | Thickness : + / - 0.05 mm , Width : + 2 / - 2 mm |
| Color | Original |
| Packaging | Standard Export Seaworthy Packing With Wooden Pallet Or As The Client's Detailed Requirements |
Applications :
Packaging
Standard Export Seaworthy Packing With Wooden Pallet Or As The Client's Detailed Requirements
