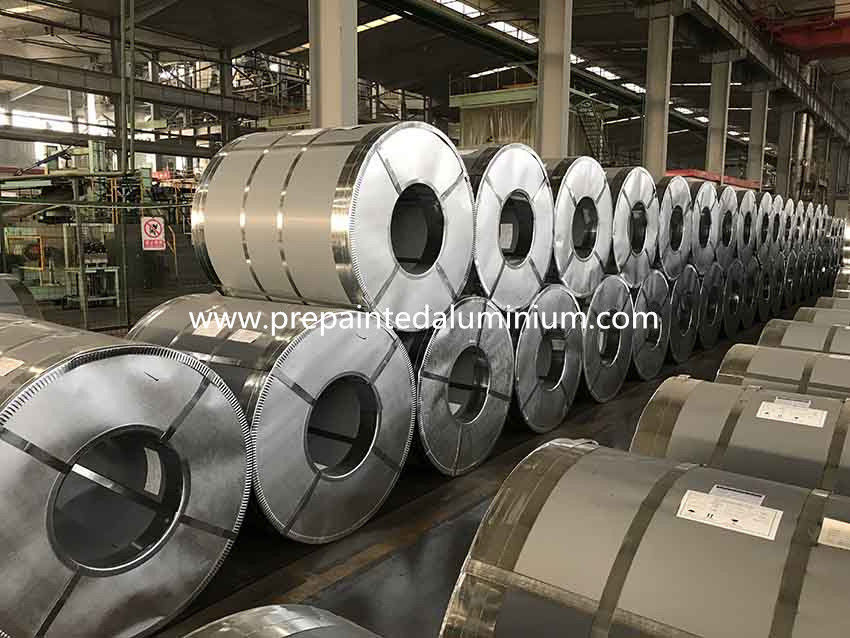

Resin - Coating Aluminum Zinc Alloy Coated Steel , Galvalume Steel Sheet For Automobile

Place of Origin China
Brand Name Dingang-GL
Certification ITS SGS BV
Model Number SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54 D + Z , Q195 / 215 / 235 And Etc
Product Details
Surface Treatment:
Chromate Passivation With Oiling Or Anti - Finger Print
Craftsmanship:
Cold Rolled
Thickness:
0.16 - 3.0 Mm
Width:
30 - 1500 Mm
Coating Type:
55 % Al , 43.5 % Zn , 1.5 % Si
Coating Thickness:
50 - 150 G / Sqm
Surface Finish:
Regular Spangle
Sample:
Available
Packing Weight(Without Pallet):
25 Kgs
Packing Weight(With Pallet):
55 Kgs
Product Name:
Aluzinc Coated Steel
High Light:

aluminum zinc coated steel

,

aluzinc metal sheet

Product Description





SGLCC SGLCD Aluzinc Coated Steel , Galvalume Steel Coil / Strip For Automobile



Description Of Goods :

Galvalume Steel Is Tthe Plating Coat Of Aluminum-zinc Alloy Armor Plate,And Its Composition Is 55 % Al , 43.4 % Zn And 1.6 % Si . The Plate With Smooth Surface And Excellent Corrosion Resistance Of The Atmosphere , Which Is 2 To 6 Times Higher Than Hot-Dip Galvanized Sheet Of The Same Thickness Of Coating .



Specifications :

■Standard : ASTM A792 / JIS G3321 / GB/T14978-2008 / EN10326-2004

■Grade : SGLCC / SGLCD / SGLC400~570 / DC51D+AZ~DC54D+AZ

■Thickness : 0.15-2.5 mm

■Width : 600 - 1250 mm ( Usually 914 mm / 1219 mm / 1220 mm / 1250 mm)

■Base Metal : Cold - Rolled Steel

■Al-Zinc Coating : 50 - 150 g / sqm

■Coil Internal Diameter : 508 mm / 610 mm

■Surface Treatment : Chromate Passivated , Non - Chromate Passivated , Oiled , Anti - finger Print And Etc

■tolerance thickness : + / - 0.05 mm , tolerance width : + 5 / - 2 mm , total quantity : + / - 10 % , alu - zinc coating : + / - 10 %

■Packing Condition : Seaworthy



Characteristics :

GL are 3 ~ 6 times more corrosion - resistant compared to GI , but has a similar level of processability and weldability and can replace GI, and in particular is most suitable when replacing GI that require thick galvanized layers and high corrosion resistance .

Only galvanized steel sheet that is used for roofing and walls without painting because of its unique silver spangles and beautiful appearance and high - corrosion resistance, and is used as a cool roofing material because of its excellent heat reflection qualities .

Can replace aluminum gilded steel sheets because for certain purposes of its electrical conductivity and its heat-resistance qualities even at high temperatures that do not exceed 315 ℃ .

Has greater surface hardness than GIs , and is much more wear - resistant .

Corrosion resistance increased more with resin-coating treatment , which enables roll forming or press forming without the spraying of processed oils .



Product Application :

Infrastructure : Roofing / External Siding / Garage / Shutter
Household Appliances : Oven / Air - Conditioning Ventilation System / Solar Water Heater / Electronics

Automobile : Mobile Muffler / Vent Pipe / Catalysis Converter Heater Shield / Bottom Accessories
Industrial Instrument : Electric Control Cabinet / Industrial Freezer Chest



Chemical Requirements :

Chemical Requirements For Structure Steel



Composition , % - Heat Analysis Element , Maximum , Unless Otherwise Shown
Designation C Mn P S Cu Ni Cr Mo V Cb Tia Nb
G230 0.20 1.35 0.04 0.04 0.25 0.20 0.15 0.06 0.008 0.008 0.025 *
G255 0.20 1.35 0.10 0.04 0.25 0.20 0.15 0.06 0.008 0.008 0.025 *
G275 0.25 1.35 0.10 0.04 0.25 0.20 0.15 0.06 0.008 0.008 0.025 *
G340 0.25 1.35 0.20 0.04 0.25 0.20 0.15 0.06 0.008 0.008 0.025 *
G550 0.20 1.35 0.04 0.04 0.25 0.20 0.15 0.06 0.008 0.015 0.025 *
